Clean gas fire extinguishing system:
IG100 nitrogen fire extinguishing agent. The density of nitrogen determines that after the fire extinguishing agent is sprayed into the protection area, it can be well mixed with the air, and the fire extinguishing effect is good. At the same time, because it uses a single-component fire extinguishing agent, it will not separate and maintain a sufficiently long fire extinguishing time. Nitrogen basically does not react chemically with other substances or mixtures, so it still maintains its own chemical properties after use and will not cause secondary pollution to other substances. Nitrogen comes from the air and returns to the atmosphere after being sprayed for fire extinguishing. It has no impact on the environment. It is an excellent fire extinguishing agent that is clean, environmentally friendly, and energy-saving.

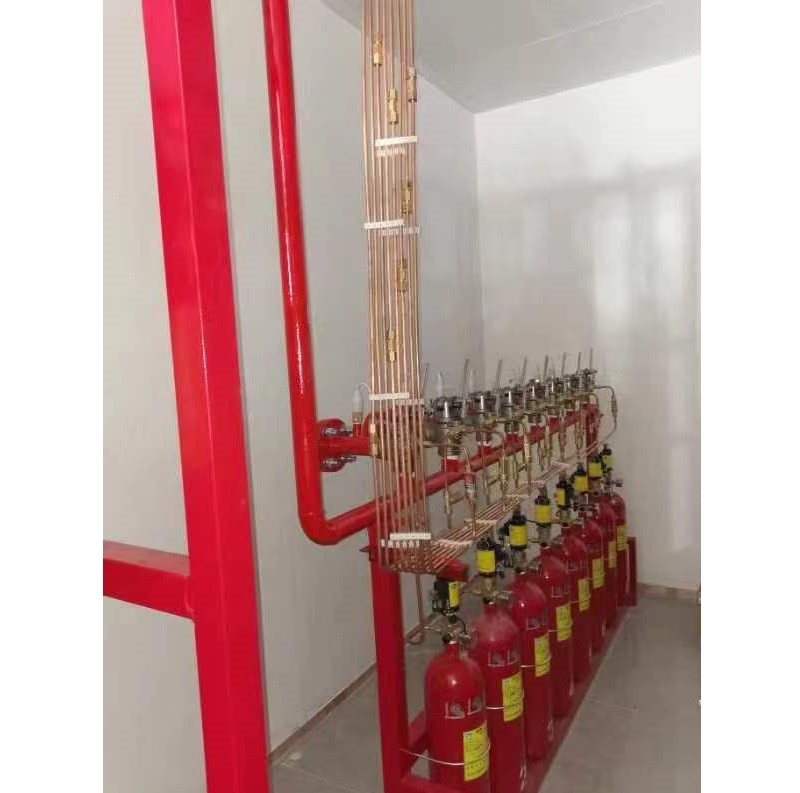

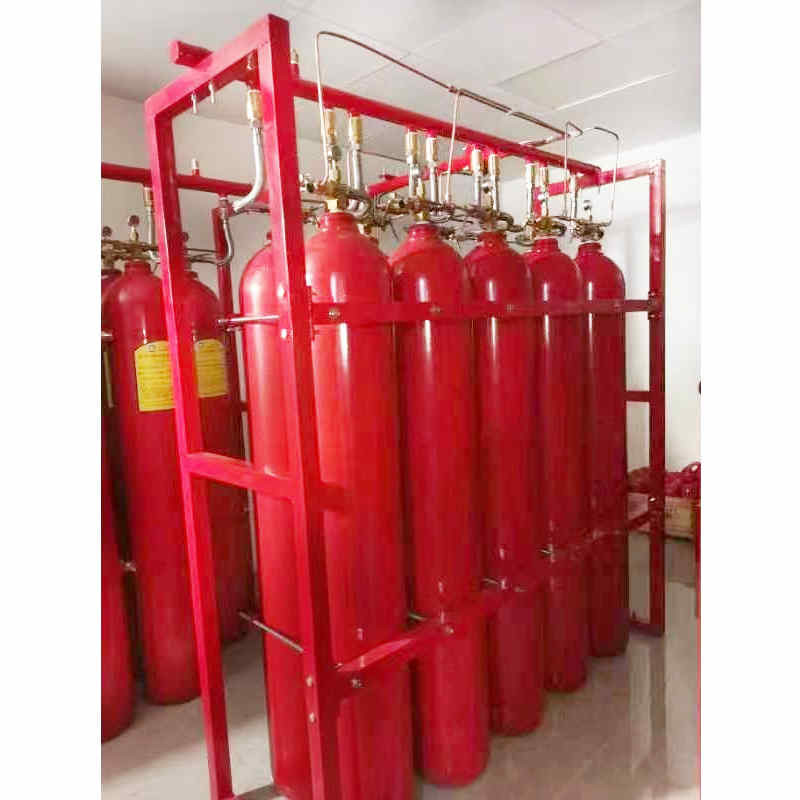

System composition The IG100 gas fire extinguishing equipment provided by our company adopts total flooding fire extinguishing method, which can usually be divided into the following two forms:
(1) Unit independent IG100 fire extinguishing system (Figure 1): A set of IG100 fire extinguishing agent storage device corresponds to a set of pipe network system to protect a protected area. (2) Combined distribution type IG100 fire extinguishing system (Figure 2): A common IG100 fire extinguishing agent storage device corresponds to several casing network systems to protect multiple protection zones.
Figure 1 Unit independent IG100 fire extinguishing system /Figure 2 Combined distribution IG100 fire extinguishing system
1. Fire extinguishing agent bottle bracket. 2. Fire extinguishing agent bottle group. 3. Connect the pipes. 4. Fire extinguishing agent circulation pipeline one-way valve. 5. Safety release device. 6. Collecting pipe. 7. Control the trachea. 8. Signal feedback device. 9. Pressure reducing device. 10. Select the valve. 11. Drive the one-way valve of the gas flow pipeline. 12. Low leakage and high sealing valve. 13. Drive the gas bottle assembly bracket. 14. Nitrogen drives the gas cylinder assembly. 15. Fully submerged nozzle.
Company introduction:
Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a professional manufacturer of fire protection facilities integrating R&D, production, design and sales services. The company has experts from the national fire protection industry standards committee and a group of professional technical service teams with more than ten years of experience in the fire protection industry, and will spare no effort to provide you with the most intimate and professional comprehensive technical solutions for fire protection engineering products. "Rongxiao" series products produced by the company have passed the national compulsory product certification and the national fixed fire extinguishing system inspection center, with reliable quality and stable performance, and the factory has passed the ISO9001 quality system certification.
Frequently asked questions:
Q1: Are you a manufacturer or a trading company? A1: We are manufacturers.
Q2: How long is the delivery time? A2:10 days, which can be negotiated according to the quantity.
Q3: How to deal with the fault? A3: During the warranty period, we will provide you with a remote emergency plan during working hours. During the free maintenance period, the company will replace spare parts or complete machines that have failed due to defects or quality problems free of charge.
