Silver cabinet type high efficiency fire extinguishing system FM200 cabinet type fire system

1 set
MOQ
Negotiation
Price
Silver cabinet type high efficiency fire extinguishing system FM200 cabinet type fire system
Features Gallery Product Description Request A Quote
Features
Specifications
Filling Pressure: 2.5Mpa
Model Of Cabinet: Can Be Double Cabinet Or Single Cabinet Or Customized
Fire Suppression Agent: FM200
Color: Red
Feature: Clean Gas And Environmental Friendly
Fire Extinguishing Time: 10 Seconds
Agent: HFC-227ea(FM200)
Spraying Time: ≤10s
Highlight:

High efficiency fire extinguishing system

,

Silver cabinet type fire system

,

FM200 cabinet type fire system

Basic Infomation
Place of Origin: Guangzhou City, Guangdong Province, China
Brand Name: Rongxiao
Certification: CAL,CMA,CNAS,,CCC
Model Number: GQQ180/2.5, GQQ150/2.5, GQQ120/2.5 ,GQQ100/2.5 ,GQQ90/2.5 ,GQQ70/2.5 ,GQQ40/2.5
Payment & Shipping Terms
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10 days, subject to quantity negotiation
Payment Terms: L/C, D/P, Western Union, T/T, Credit card
Supply Ability: 28000 sets per week
Product Description

Main parameters of fire extinguishing equipment

Design working pressure(20℃) Maximum working pressure(50℃) Maximum filling density Storage container volume Injection time Stable use environment working pressure operational current
2.5Mpa 4.2Mpa ≤1150kg/m 40L/70L/90L/100L/120L/150L/180L ≤10s 0~50℃ DC24V 1.5A


asic parameters of bottle group

specifications and models Ambient temperature(℃) Gas cylinder volume(L) Export path Height H(mm) Outside diameter of bottle group D(mm) Bottle neck thread
GQQ40/2.5 0~50 40 DN32 930 φ310 PZ56
GQQ70/2.5 0~50 70 DN32 1320 φ360
GQQ90/2.5 0~50 90 DN32 1580 φ360
GQQ100/2.5 0~50 100 DN32 1517 Φ360
GQQ120/2.5 0~50 120 DN40 1744 Φ360 M64 x 2
GQQ150/2.5 0~50 150 DN40 1667 φ412 M64 x 2
GQQ180/2.5 0~50 180 DN50 1543 Φ412 M80 x 2



Application range:
The product is mainly suitable for fire protection in key places such as computer rooms, communication base stations, libraries, archives, valuables warehouses, power stations, telecommunications centers, distribution rooms, clean workshops, etc.

Composition:

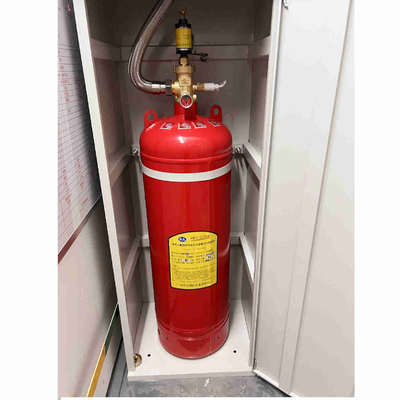

The cabinet-type HFC-227ea gas fire extinguishing device is mainly composed of a box, a bottle head valve, a fire extinguishing agent storage bottle, a pressure switch (pressure signal device), a nozzle, a fire alarm and fire extinguishing controller, a fire detector, a manual control box, an audible and visual alarm box, a gas discharge indicator light, etc. Its control part can be connected with the computer control center.



Company introduction:

Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a professional manufacturer of fire protection facilities integrating R&D, production, design and sales services. The company has experts from the national fire protection industry standards committee and a group of professional technical service teams with more than ten years of experience in the fire protection industry, and will spare no effort to provide you with the most intimate and professional comprehensive technical solutions for fire protection engineering products. "Rongxiao" series products produced by the company have passed the national compulsory product certification and the national fixed fire extinguishing system inspection center, with reliable quality and stable performance, and the factory has passed the ISO9001 quality system certification.



Frequently asked questions:

Q1: Are you a manufacturer or a trading company? A1: We are manufacturers.

Q2: How long is the delivery time? A2:10 days, which can be negotiated according to the quantity.

Q3: How to deal with the fault? A3: During the warranty period, we will provide you with a remote emergency plan during working hours. During the free maintenance period, the company will replace spare parts or complete machines that have failed due to defects or quality problems free of charge.
