★Product Introduction
The pipeless fire extinguishing system is a prefabricated, fully flooded fire extinguishing system, which is an independent set. Compared with the piped fire extinguishing system, it has the characteristics of flexible and convenient installation, beautiful appearance, no pipe loss of fire extinguishing agent, high fire extinguishing efficiency, fast speed and no pollution. It is a pipeless, lightweight, movable and automatic fire extinguishing fire fighting equipment.
★System composition

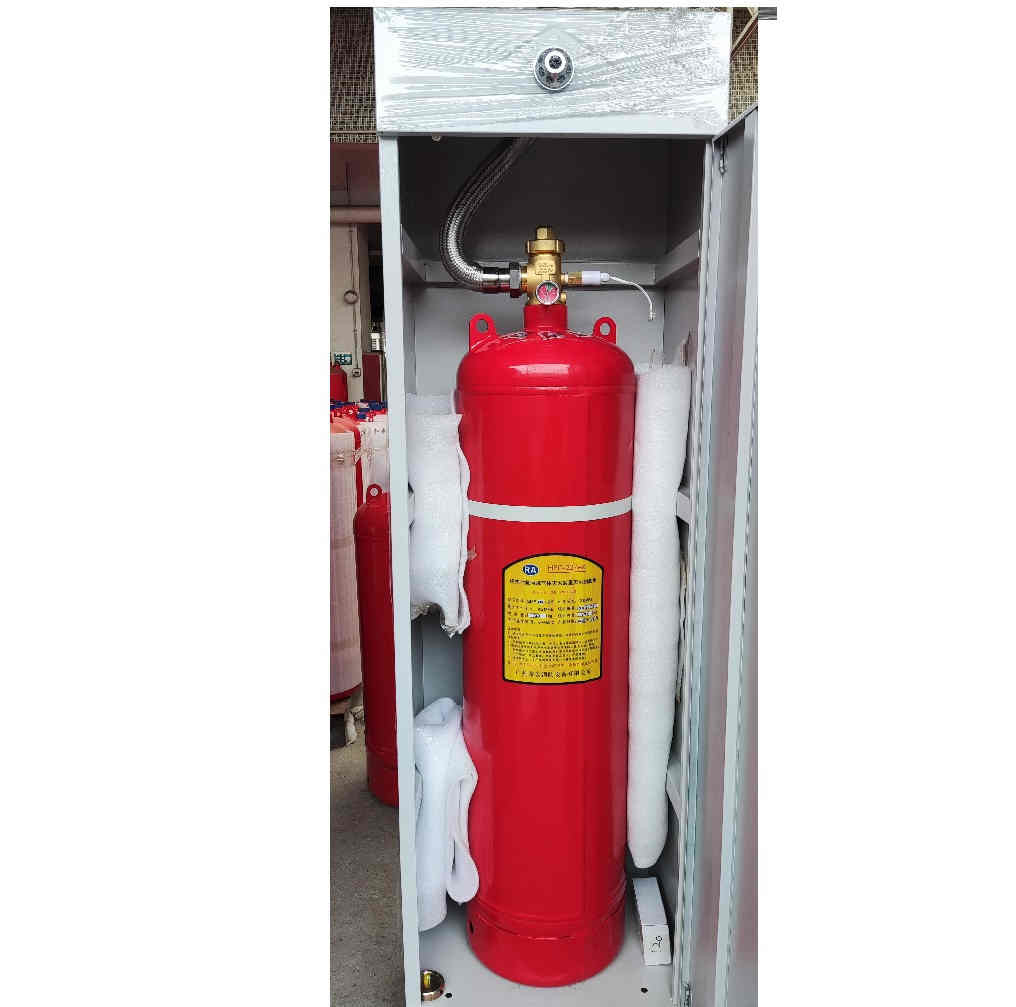

The device consists of a storage bottle group, a high-pressure hose, a box, a box nozzle, a pressure feedback device and other components.
★Application places
1. It can extinguish all types of fires A, B, and C, and can be used safely and effectively in places with people;
2. Places where it is required to leave no traces or difficult to clean the residues after the spraying of the agent;
3. The protected area contains valuables, priceless treasures, precious archives, software and hardware, etc.;
4. It is especially suitable for: telecommunications main control room, airport control room, bank vault, archives, library, computer room and other occasions.
Basic parameters of bottle group
| specifications and models |
Ambient temperature(℃) |
Gas cylinder volume(L) |
Export path |
Height H(mm) |
Outside diameter of bottle group D(mm) |
Bottle neck thread |
| GQQ40/2.5 |
0～50 |
40 |
DN32 |
930 |
φ310 |
PZ56 |
| GQQ70/2.5 |
0～50 |
70 |
DN32 |
1320 |
φ360 |
| GQQ90/2.5 |
0～50 |
90 |
DN32 |
1580 |
φ360 |
| GQQ100/2.5 |
0～50 |
100 |
DN32 |
1517 |
Φ360 |
| GQQ120/2.5 |
0～50 |
120 |
DN40 |
1744 |
Φ360 |
M64 x 2 |
| GQQ150/2.5 |
0～50 |
150 |
DN40 |
1667 |
φ412 |
M64 x 2 |
| GQQ180/2.5 |
0～50 |
180 |
DN50 |
1543 |
Φ412 |
M80 x 2 |
Company introduction:
Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a professional manufacturer of fire protection facilities integrating R&D, production, design and sales services. The company has experts from the national fire protection industry standards committee and a group of professional technical service teams with more than ten years of experience in the fire protection industry, and will spare no effort to provide you with the most intimate and professional comprehensive technical solutions for fire protection engineering products. "Rongxiao" series products produced by the company have passed the national compulsory product certification and the national fixed fire extinguishing system inspection center, with reliable quality and stable performance, and the factory has passed the ISO9001 quality system certification.
Frequently asked questions:
Q1: Are you a manufacturer or a trading company? A1: We are manufacturers.
Q2: How long is the delivery time? A2:10 days, which can be negotiated according to the quantity.
Q3: How to deal with the fault? A3: During the warranty period, we will provide you with a remote emergency plan during working hours. During the free maintenance period, the company will replace spare parts or complete machines that have failed due to defects or quality problems free of charge.
