FM200 2.5MPa Fire Extinguishing Suppression Agent System With Solenoid Actuator Container Valve
Technical features:

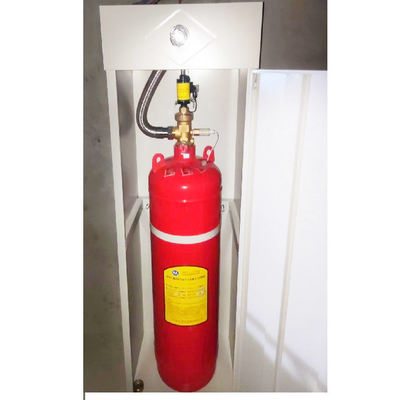

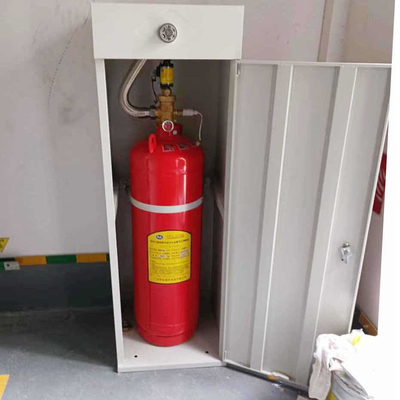

1. The cabinet-type HFC-227ea fire extinguishing device assembles the bottle group, nozzle and other components containing HFC-227ea fire extinguishing agent in the cabinet to form a complete set of fire extinguishing equipment. It has beautiful appearance and is easy to install. It can be directly installed in the protection area without the need for a special bottle group room and fire extinguishing agent delivery pipeline network. It is particularly suitable for built, independent, and smaller protection areas;
2. The cabinet-type fire extinguishing device is equipped with a separate fire automatic detection alarm controller, and can also be connected to the fire control center. The device has two operation modes: automatic and manual;
3. The cabinet-type fire extinguishing device is also called a prefabricated fire extinguishing system. It can be used alone or in conjunction with a larger protection area. No more than 10 units should be used in one protection area.
Basic parameters of bottle group
| specifications and models | Ambient temperature(℃) | Gas cylinder volume(L) | Export path | Height H(mm) | Outside diameter of bottle group D(mm) | Bottle neck thread |
| GQQ40/2.5 | 0～50 | 40 | DN32 | 930 | φ310 | PZ56 |
| GQQ70/2.5 | 0～50 | 70 | DN32 | 1320 | φ360 | |
| GQQ90/2.5 | 0～50 | 90 | DN32 | 1580 | φ360 | |
| GQQ100/2.5 | 0～50 | 100 | DN32 | 1517 | Φ360 | |
| GQQ120/2.5 | 0～50 | 120 | DN40 | 1744 | Φ360 | M64 x 2 |
| GQQ150/2.5 | 0～50 | 150 | DN40 | 1667 | φ412 | M64 x 2 |
| GQQ180/2.5 | 0～50 | 180 | DN50 | 1543 | Φ412 | M80 x 2 |
40L 70L 90L 100L /120L/150L 180L
