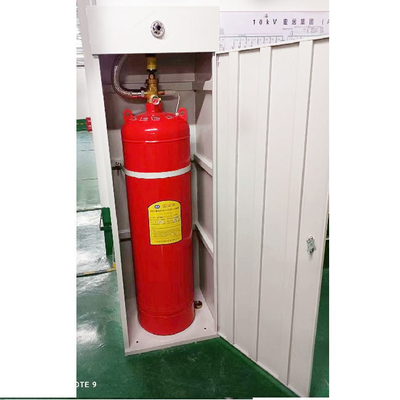

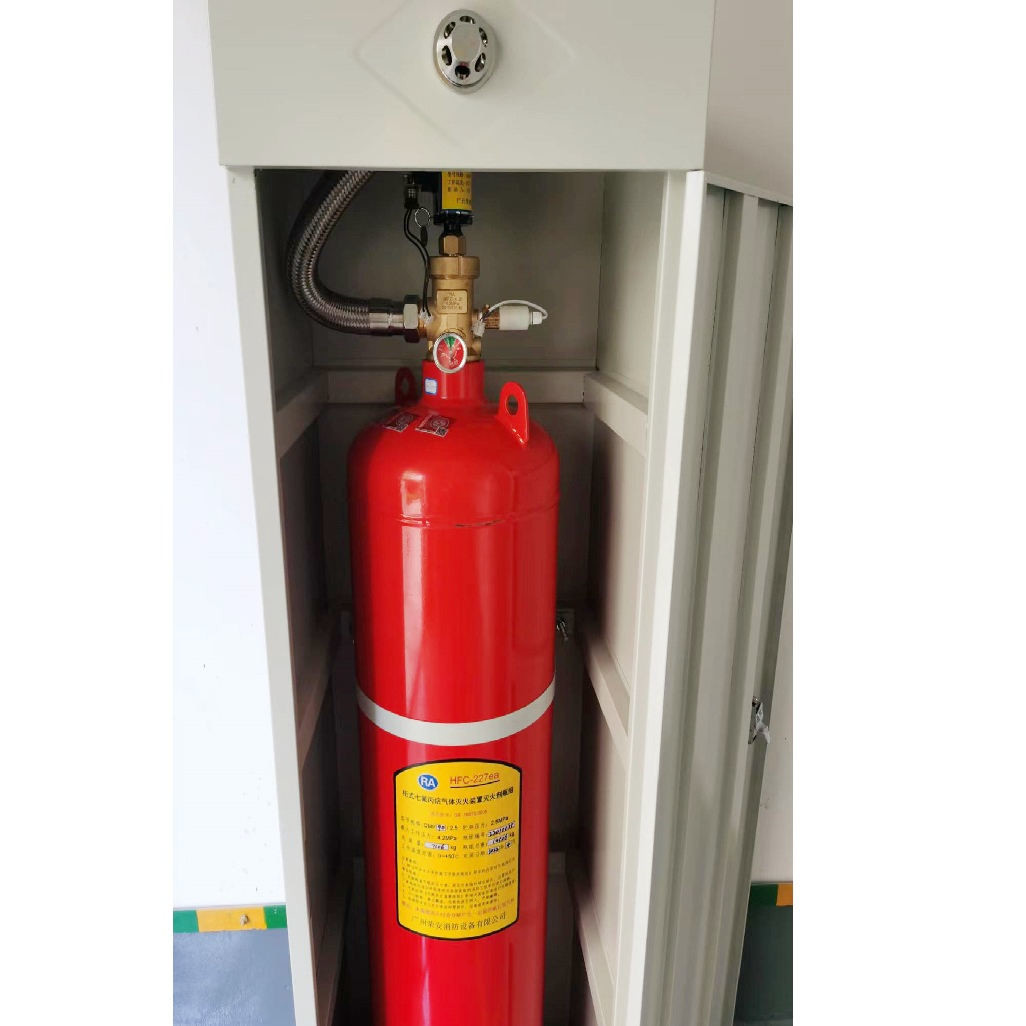

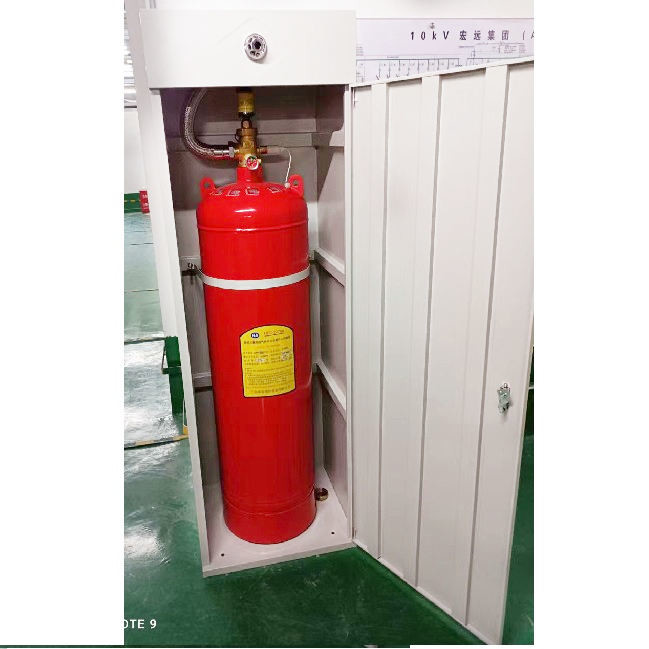

Temperature range 0C to 50C FM200 Cabinet System with Nozzles
principle of operation
When the fire detector detects the fire, it feeds back the fire signal to the alarm control device, which controls the audible and visual alarm, sends out the scattering alarm signal and controls the linkage equipment. After a delay of 30 seconds, the alarm control device outputs the starting electric signal (DC24V,1.5A) to the electromagnetic driver of the cabinet heptafluoropropane fire extinguishing device, and the electromagnetic driver acts to open the fire extinguishing agent bottle group and release the heptafluoropropane fire extinguishing agent. The fire extinguishing agent is sprayed into the protected area through the nozzle to achieve the purpose of fire extinguishing. When the high-pressure fire extinguishing agent flows through the pipeline, the microswitch in the signal feedback device is closed, and the signal feedback device acts to feed back an electrical signal to the alarm control device, indicating that the heptafluoropropane fire extinguishing agent has been sprayed.
Product advantages:
Easy to install and maintain, portable, economical and practical, beautiful appearance, small footprint, no need for a special cylinder room.
High fire extinguishing efficiency, fast fire extinguishing speed, clean and no contamination to equipment, good electrical insulation, low toxicity of fire extinguishing agent, basically harmless to the human body.
Main parameters of fire extinguishing equipment
| Design working pressure(20℃) | Maximum working pressure(50℃) | Maximum filling density | Storage container volume | Injection time | Stable use environment | working pressure | operational current |
| 2.5Mpa | 4.2Mpa | ≤1150kg/m | 40L/70L/90L/100L/120L/150L/180L | ≤10s | 0~50℃ | DC24V | 1.5A |
Company introduction:
Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a professional manufacturer of fire protection facilities integrating R&D, production, design and sales services. The company has experts from the national fire protection industry standards committee and a group of professional technical service teams with more than ten years of experience in the fire protection industry, and will spare no effort to provide you with the most intimate and professional comprehensive technical solutions for fire protection engineering products. "Rongxiao" series products produced by the company have passed the national compulsory product certification and the national fixed fire extinguishing system inspection center, with reliable quality and stable performance, and the factory has passed the ISO9001 quality system certification.
