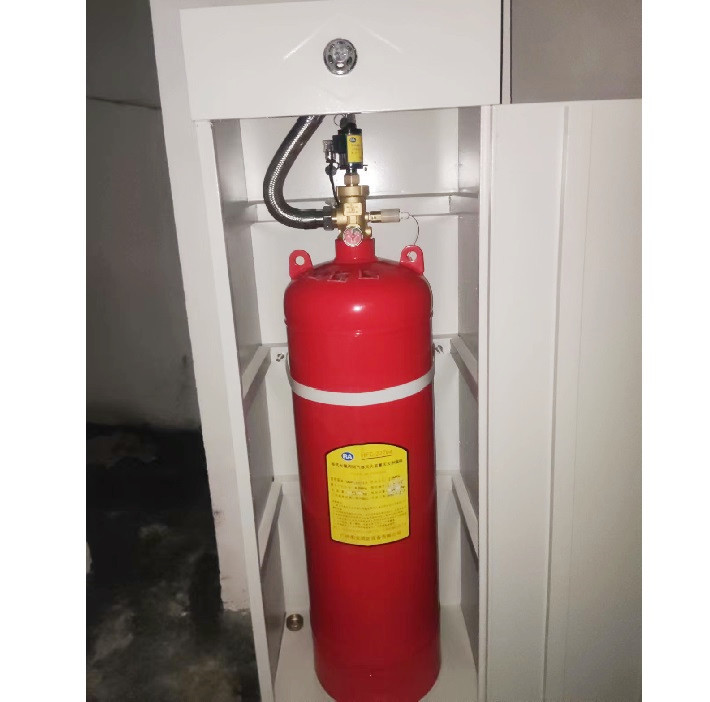

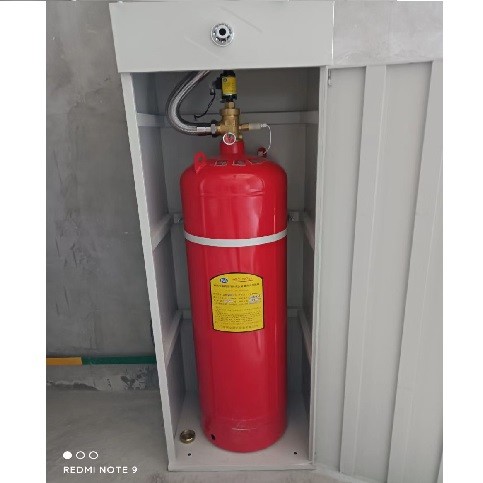

100L single cabinet FM200 computer room database gas fire extinguisher
Product introduction:
Cabinet fire extinguishing device is a prefabricated system, which is produced in series. It is a pipe-free, lightweight, movable, automatic fire-fighting fire-fighting equipment with flexible and convenient installation and beautiful appearance. There is no pipe network loss for fire extinguishing agent, and it has the characteristics of high fire extinguishing efficiency, fast speed and no pollution.
When a fire occurs, the fire extinguishing agent can be automatically sprayed directly into the protected area, which is convenient and fast. This device does not have a bottle storage room. The gas storage cylinder and the entire system are set in the protected area. It can be connected to the fire control center or equipped with a gas fire extinguishing controller separately. It is a self-contained system, giving users a convenient and flexible choice. For the existing buildings that need to add a gas fire extinguishing system, it is more appropriate to use a cabinet fire extinguishing device.
The working principle of this device is similar to that of an independent single-zone system, except that no pipeline is required. After starting, the fire extinguishing agent is sprayed directly into the area through a very short section of pipes and nozzles to extinguish the fire.
Main parameters of fire extinguishing equipment
| Design working pressure(20℃) | Maximum working pressure(50℃) | Maximum filling density | Storage container volume | Injection time | Stable use environment | working pressure | operational current |
| 2.5Mpa | 4.2Mpa | ≤1150kg/m | 40L/70L/90L/100L/120L/150L/180L | ≤10s | 0~50℃ | DC24V | 1.5A |
Basic parameters of bottle group
| specifications and models | Ambient temperature(℃) | Gas cylinder volume(L) | Export path | Height H(mm) | Outside diameter of bottle group D(mm) | Bottle neck thread |
| GQQ40/2.5 | 0～50 | 40 | DN32 | 930 | φ310 | PZ56 |
| GQQ70/2.5 | 0～50 | 70 | DN32 | 1320 | φ360 | |
| GQQ90/2.5 | 0～50 | 90 | DN32 | 1580 | φ360 | |
| GQQ100/2.5 | 0～50 | 100 | DN32 | 1517 | Φ360 | |
| GQQ120/2.5 | 0～50 | 120 | DN40 | 1744 | Φ360 | M64 x 2 |
| GQQ150/2.5 | 0～50 | 150 | DN40 | 1667 | φ412 | M64 x 2 |
| GQQ180/2.5 | 0～50 | 180 | DN50 | 1543 | Φ412 | M80 x 2 |
Company introduction:
Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a professional manufacturer of fire protection facilities integrating R&D, production, design and sales services. The company has experts from the national fire protection industry standards committee and a group of professional technical service teams with more than ten years of experience in the fire protection industry, and will spare no effort to provide you with the most intimate and professional comprehensive technical solutions for fire protection engineering products. "Rongxiao" series products produced by the company have passed the national compulsory product certification and the national fixed fire extinguishing system inspection center, with reliable quality and stable performance, and the factory has passed the ISO9001 quality system certification.
Frequently asked questions:
Q1: Are you a manufacturer or a trading company? A1: We are manufacturers.
Q2: How long is the delivery time? A2:10 days, which can be negotiated according to the quantity.
Q3: How to deal with the fault? A3: During the warranty period, we will provide you with a remote emergency plan during working hours. During the free maintenance period, the company will replace spare parts or complete machines that have failed due to defects or quality problems free of charge.
