IG541 gas fire fighting system for safe fire extinguishing with nitrogen, argon and CO2
IG541 mixed gas fire extinguishing system (15Mpa / 20Mpa)
Introduction: 1G541 gas fire extinguishing system consists of automatic fire detectors, automatic alarm controllers, automatic control devices, fixed fire extinguishing devices, pipe networks, nozzles, etc. It has three start modes: automatic start, manual start and mechanical emergency start. According to the requirements of use, it can be composed of unit independent systems and combined distribution systems, using full flooding to achieve fire protection for single protection areas and multiple protection areas.
System composition The IG541 gas fire extinguishing equipment provided by our company adopts total flooding fire extinguishing method, which can usually be divided into the following two forms:
(1) Unit independent IG541 fire extinguishing system (Figure 1): A set of IG541 fire extinguishing agent storage device corresponds to a set of pipe network system to protect a protected area.
(2) Combined distribution type IG541 fire extinguishing system (Figure 2): A common IG541 fire extinguishing agent storage device corresponds to several pipe network systems to protect multiple protection zones.
Figure 1 Unit independent IG541 fire extinguishing system Figure 2 Combined distribution IG541 fire extinguishing system

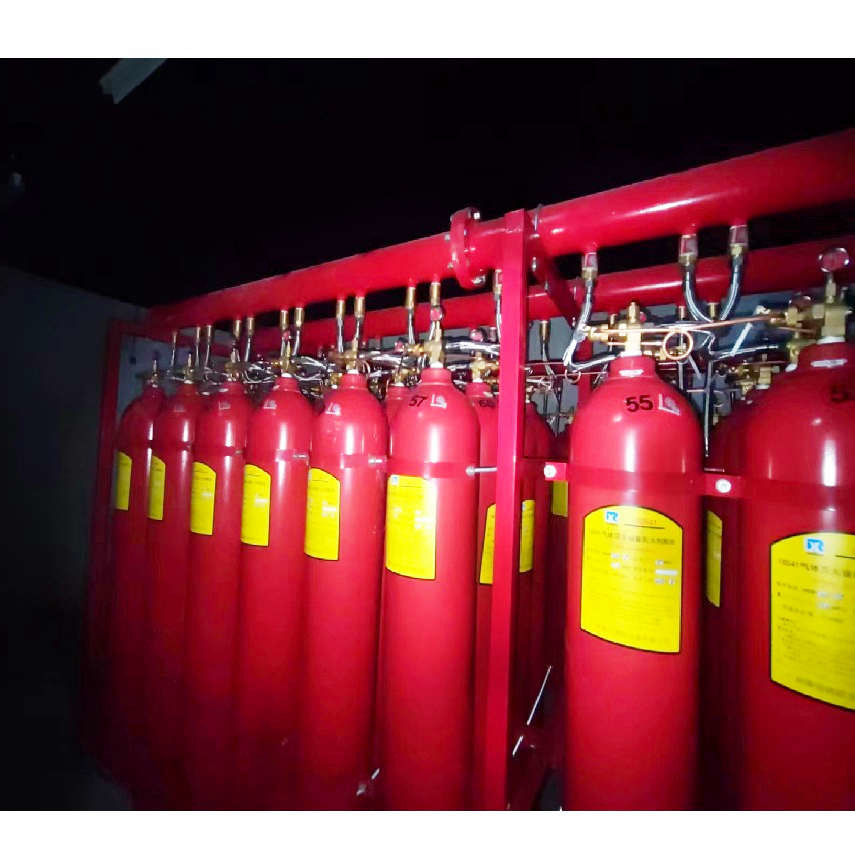

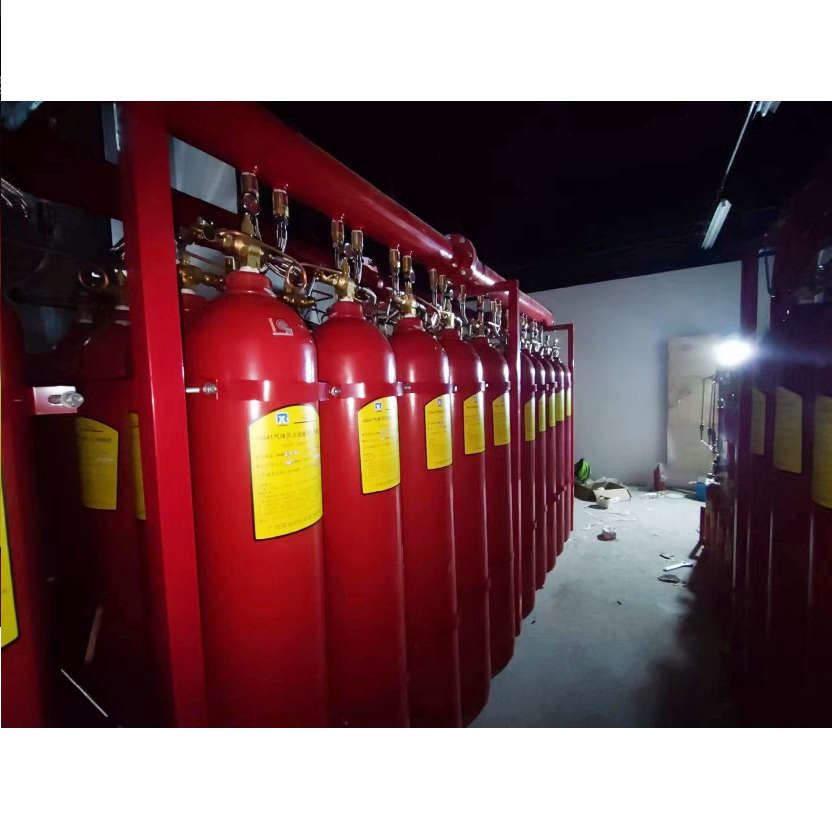

Overall dimensions and performance parameters of IG541 fire extinguishing agent bottle group
| Specifications | volume(L) | Filling Weight (kg) | Total weight(kg) | gross(mm) | outside diameter(mm) | Outlet connection thread | Filling pressure at 20℃(MPa) |
| HMP70/15 | 70 | 14.77 | 103 | 1600 | 279 | M30×1.5 | 15 |
| HMP80/15 | 80 | 16.88 | 115 | 1800 | 279 | ||
| HMP90/15 | 90 | 18.99 | 120 | 1530 | 325 |
| Specifications | volume(L) | Filling Weight (kg) | Total weight(kg) | gross(mm) | outside diameter(mm) | Outlet connection thread | Filling pressure at 20℃(MPa) |
| HMP80/20 | 80 | 22.49 | 143 | 1830 | 279 | M30×1.5 | 20 |
| HMP82/20 | 82 | 23.05 | 146 | 1860 | 279 | ||
| HMP90/20 | 90 | 25.3 | 157 | 2000 | 279 |
Company introduction:
Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a professional manufacturer of fire protection facilities integrating R&D, production, design and sales services. The company has experts from the national fire protection industry standards committee and a group of professional technical service teams with more than ten years of experience in the fire protection industry, and will spare no effort to provide you with the most intimate and professional comprehensive technical solutions for fire protection engineering products. "Rongxiao" series products produced by the company have passed the national compulsory product certification and the national fixed fire extinguishing system inspection center, with reliable quality and stable performance, and the factory has passed the ISO9001 quality system certification.
Frequently asked questions:
Q1: Are you a manufacturer or a trading company? A1: We are manufacturers.
Q2: How long is the delivery time? A2:10 days, which can be negotiated according to the quantity.
Q3: How to deal with the fault? A3: During the warranty period, we will provide you with a remote emergency plan during working hours. During the free maintenance period, the company will replace spare parts or complete machines that have failed due to defects or quality problems free of charge.
