High Safety NOVEC1230 Fire Suppression System with DC24V/1.5A Voltage
1. Working Principle
The fire detection device is composed of a pressure vessel filled with fire extinguishing agent, a container valve, and a fire detection tube and/or a release tube that can release the fire extinguishing agent. The fire detection tube is placed near or above the most likely place where the fire source occurs, and at the same time, detection is carried out by relying on many detection points (linear) along the fire detection tube. Once a fire occurs, the fire detection tube is softened and exploded at the highest heat temperature, and the fire extinguishing medium is released to the protected area through the fire detection tube itself (direct system) or the nozzle (indirect system). Among them, the fire detection tube is a new variety developed in the high-tech field and is a high-tech non-metallic synthetic product. First, it combines long-term leakage resistance, flexibility and effective temperature sensitivity, and explodes within a certain temperature range to spray fire extinguishing medium or transmit fire signals. Second, it does not require power supply and traditional fire alarm control components, thereby reducing costs and installation difficulties, and also greatly improves the reliability of the fire extinguishing device and avoids the malfunction of the electric control alarm components.

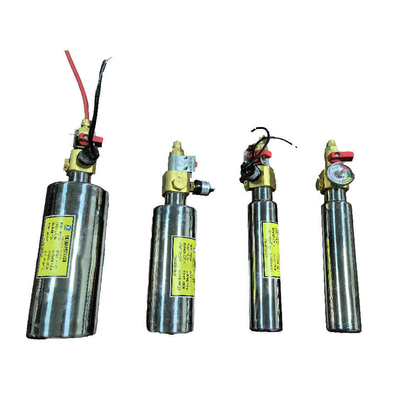

2. Dimensions and performance parameters of fire extinguishing agent bottle group
| Design working pressure (20℃) | Maximum working pressure (50℃) | Filling density | Storage container volume | Injection time | Operating ambient temperature | Static operating temperature of fire detector |
| 1.6MPa | 2.3MPa |
1000Kg/m3 (maximum1420Kg/m3) |
0.2L / 0.4L /0.8L/1L / 2L/3L/5L/6L/8L/10L | ≤10s | -10～50℃ |
160±10℃ 170±10℃ 180±10℃ |
Related reports and certificates
Company introduction:
Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a professional manufacturer of fire protection facilities integrating R&D, production, design and sales services. The company has experts from the national fire protection industry standards committee and a group of professional technical service teams with more than ten years of experience in the fire protection industry, and will spare no effort to provide you with the most intimate and professional comprehensive technical solutions for fire protection engineering products. "Rongxiao" series products produced by the company have passed the national compulsory product certification and the national fixed fire extinguishing system inspection center, with reliable quality and stable performance, and the factory has passed the ISO9001 quality system certification.
Frequently asked questions:
Q1: Are you a manufacturer or a trading company? A1: We are manufacturers.
Q2: How long is the delivery time? A2:10 days, which can be negotiated according to the quantity.
Q3: How to deal with the fault? A3: During the warranty period, we will provide you with a remote emergency plan during working hours. During the free maintenance period, the company will replace spare parts or complete machines that have failed due to defects or quality problems free of charge.
