Pipeline FM200 gas fire extinguishing system protects multiple areas
Fire extinguishing agent introduction
HFC-227ea (FM200) is a green and clean fire extinguishing agent that has no destructive effect on the atmospheric ozone layer. It is a gas fire extinguishing agent that mainly uses chemical suppression to extinguish fires. It has high fire extinguishing efficiency and no pollution to equipment. It has good electrical insulation and rapid fire extinguishing. It is an ideal substitute for halogenated hydrocarbon fire extinguishing system.
System introduction

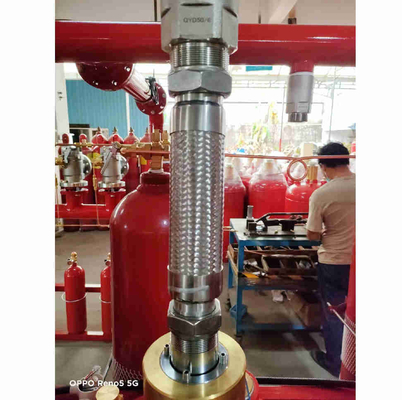

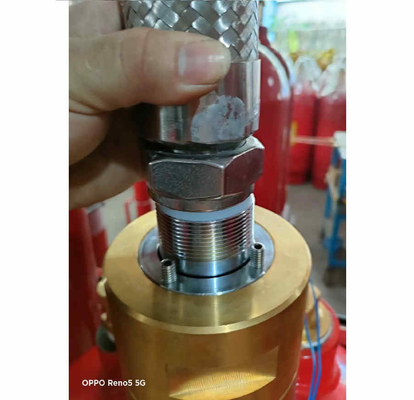

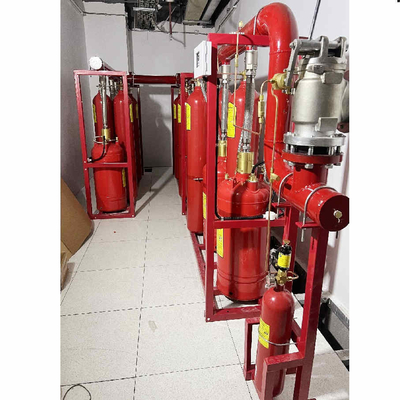

The external storage pressure HFC-227ea fire extinguishing system is mainly composed of fire extinguishing agent storage bottle, container valve, power drive bottle group, drive gas bottle group, selection valve, liquid flow check valve, gas check valve, safety valve, signal feedback device cylinder frame, nozzle, high-pressure hose, pressure reducing device, liquid level gauge, low leakage and high sealing valve, pipeline system, etc. It can be composed of various forms such as unit independent system and combined distribution system to implement single zone and fire protection.
Equipment technical performance parameters:
| Temperature℃ | Pressure Mpa(20℃) | Power Supply | |||
| design temperature | usage temperature | Fire extinguishing agent bottle group | Nitrogen-driven bottle group |
Main electricity
|
Standby power
|
| 0-50 | 0-50 | 0.3 | 13.5 |
AC 220V |
DC24V |
Coefficient of technical performance parameters
| Injection time s | Delay time s | Nozzle inlet pressure Mpa | Starting power supply (DC power supply) | |
| ≤10 | 0~30 | ≥0.7 | ≥0.8 | 24V,1.5A |
Bottle group specifications and storage pressure
| Bottle group name | Model specification (l) | Storage pressure (20℃) | ||||
| Nitrogen start-up bottle group | 8 | 6Mpa | ||||
| Nitrogen automatic bottle group | 70 | 13.5Mpa | ||||
| Fire extinguishing agent bottle group | 70 | 90 | 120 | 150 | 180 | 0.3Mpa |
Company introduction:
Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a professional manufacturer of fire protection facilities integrating R&D, production, design and sales services. The company has experts from the national fire protection industry standards committee and a group of professional technical service teams with more than ten years of experience in the fire protection industry, and will spare no effort to provide you with the most intimate and professional comprehensive technical solutions for fire protection engineering products. "Rongxiao" series products produced by the company have passed the national compulsory product certification and the national fixed fire extinguishing system inspection center, with reliable quality and stable performance, and the factory has passed the ISO9001 quality system certification.
Frequently asked questions:
Q1: Are you a manufacturer or a trading company? A1: We are manufacturers.
Q2: How long is the delivery time? A2:10 days, which can be negotiated according to the quantity.
Q3: How to deal with the fault? A3: During the warranty period, we will provide you with a remote emergency plan during working hours. During the free maintenance period, the company will replace spare parts or complete machines that have failed due to defects or quality problems free of charge.
